In the course of wind resistance and take-off and landing, the current is very large. Therefore, it is essential to choose this high-current safety quick-release connector.
Application：

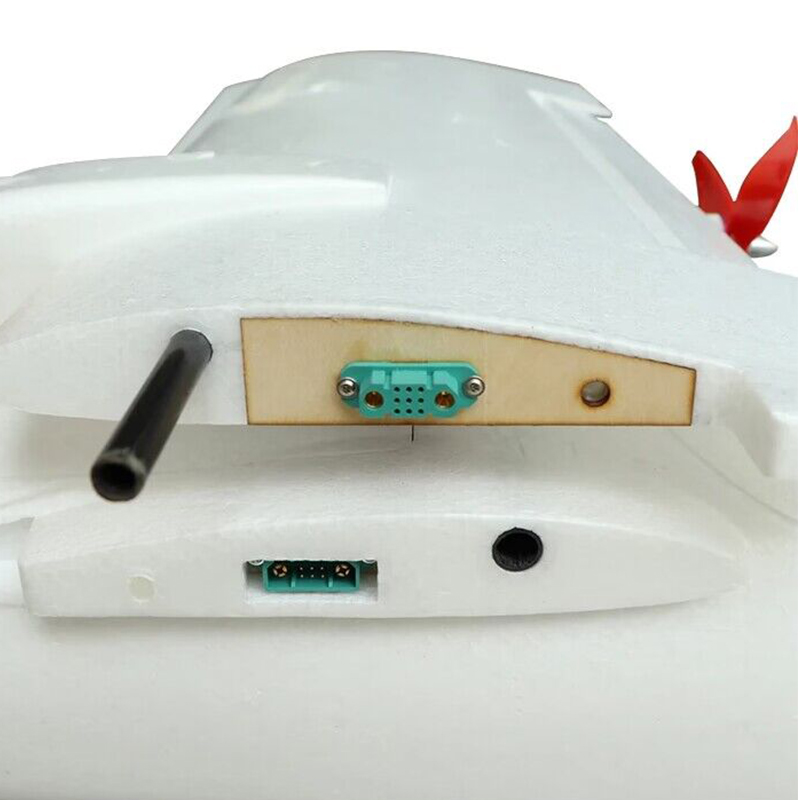

Commonly used for VTOL(vertical take-off and landing) and4+1 wing motors.
Specification：

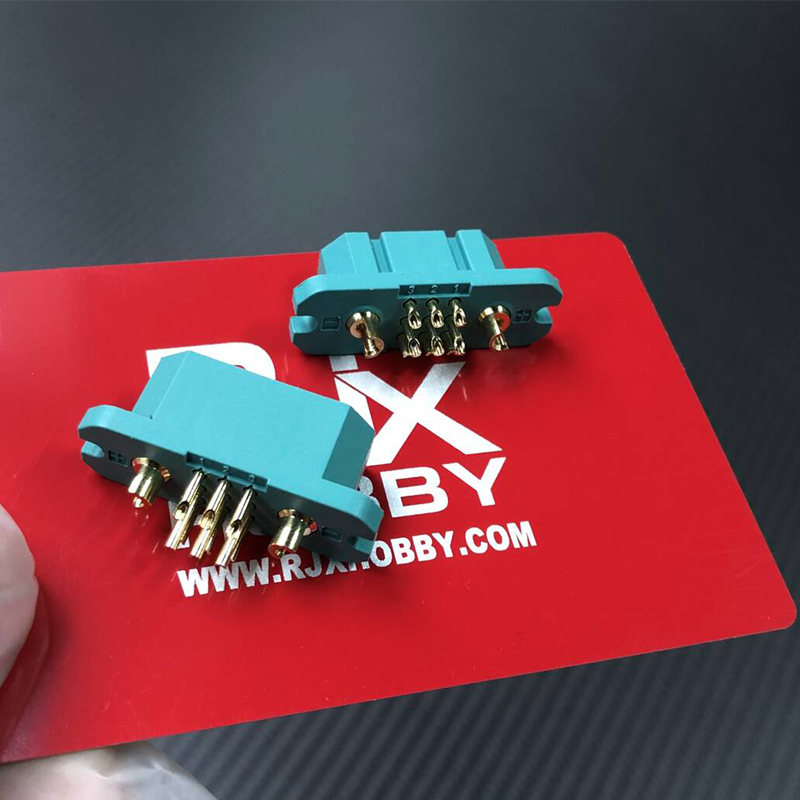

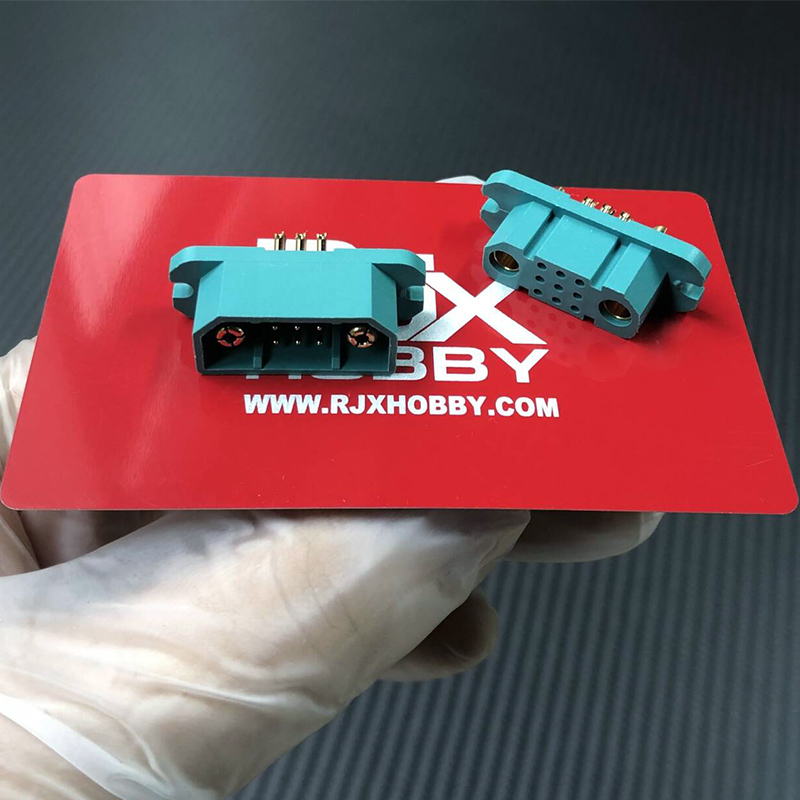

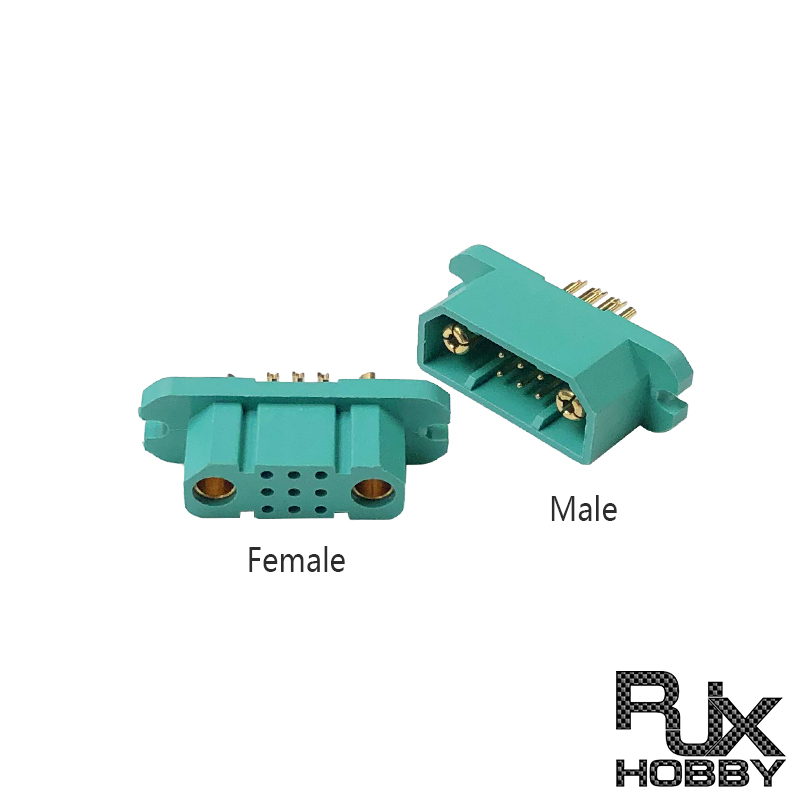

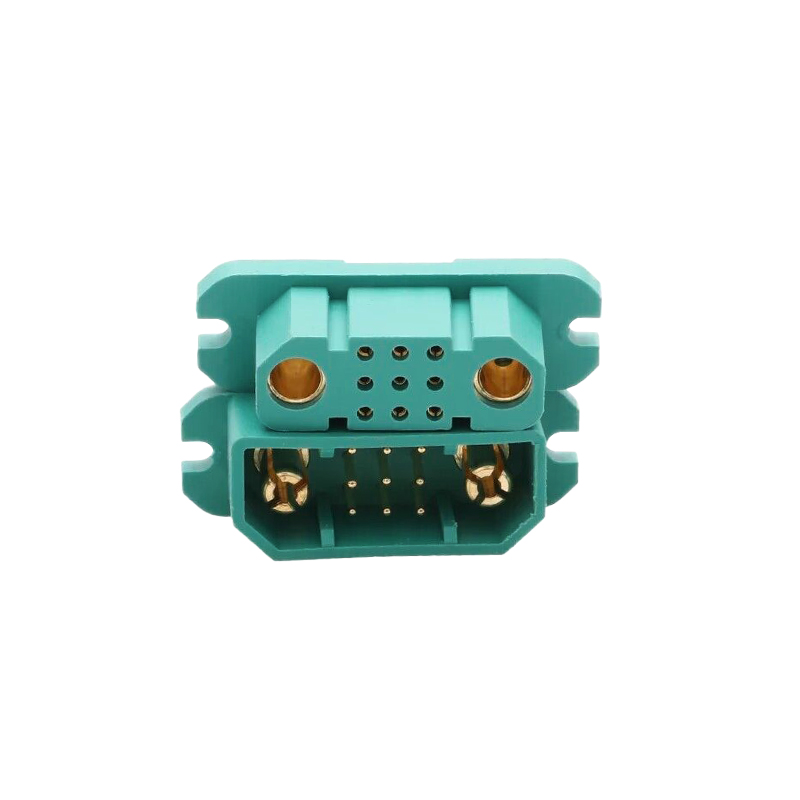

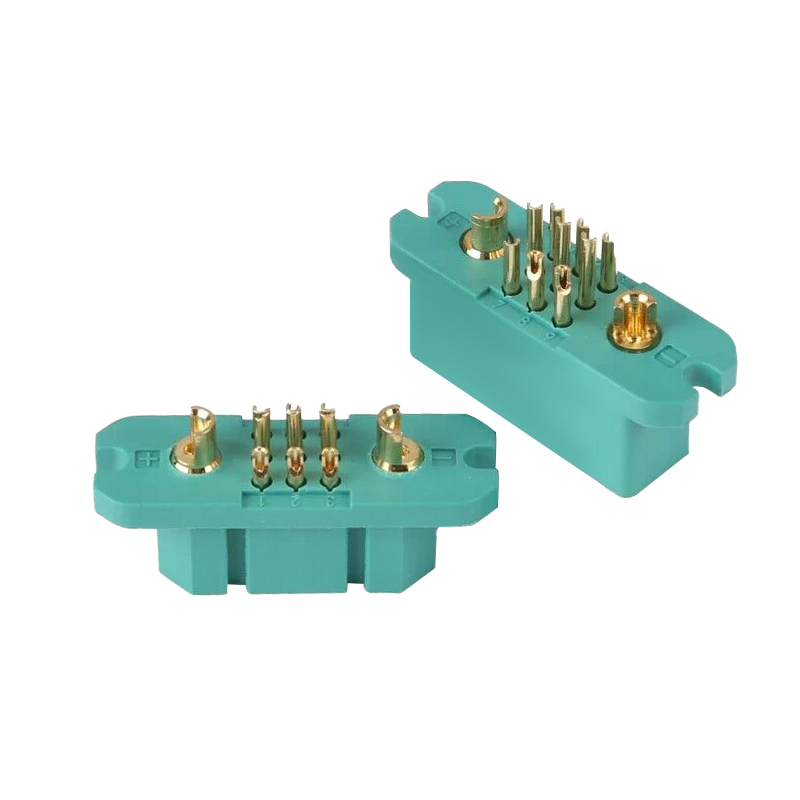

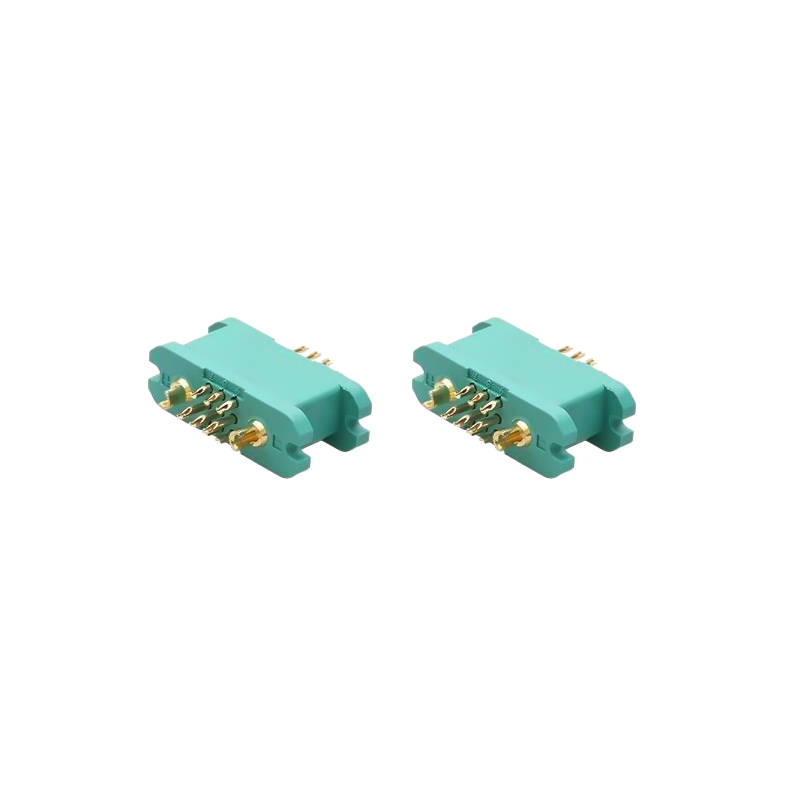

Item name: VTOL 9+2 Connector
Weight: 9.5g/pair
Type：JX-9
Metal Material: Brass Gold Plated
Plastic Material: PA
Instantaneous current: (big) 60A/(Small) 7A
Rated current: (big) 30A/(Sma1l) 5A
Rated voltage: DC 500V
Contact resi stance: 0.3 mΩ
Flame retardant leve: lUL94 V0
Working tenperature: -20C ~ 120C
Package include：
1pairs x plugs
