Product features:
Brand: RJXHOBBY
Temp range:-65～+165℃ (PE Cable-40～+85℃)
Vibration:MIL-STD-202,Method 213
Impedance:50Ω
Frequency Range：DC～12.4GHz
Working Voltage：335V max
Insulation resistance≥ 5000 MΩ
Insertion loss≤0.15 dB/6GHz
Category: Connectors, Interconnects
Family: Coaxial, RF Adapters
Style:45 degree Angle Adapter
Contactor plating:Goldplated
Feature:

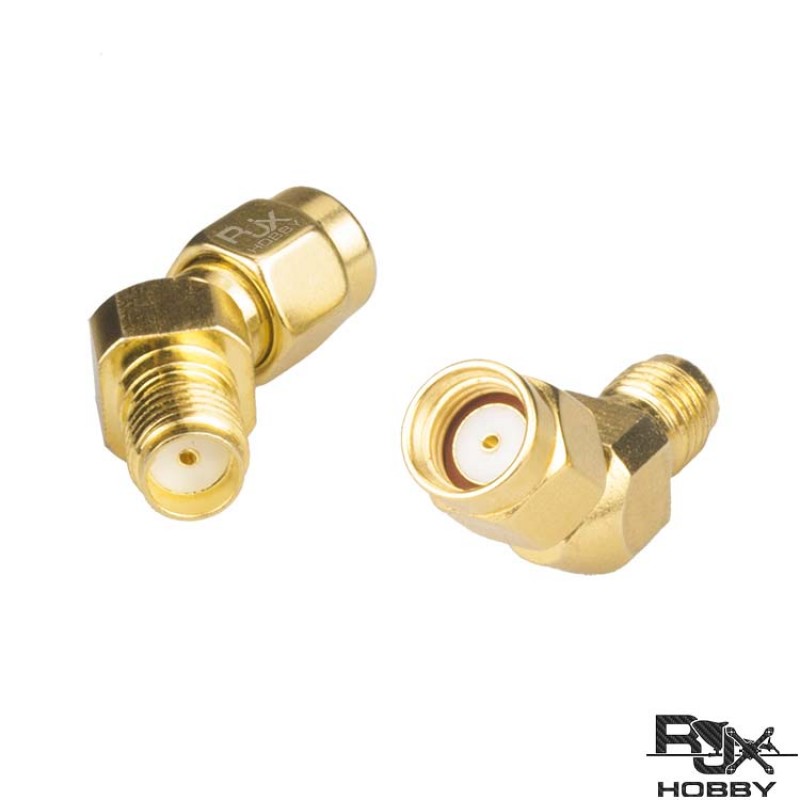

SMA 45 degree Angle Adapter SMA Female to RP SMA Male; Commercial Grade SMA Series Adapters.

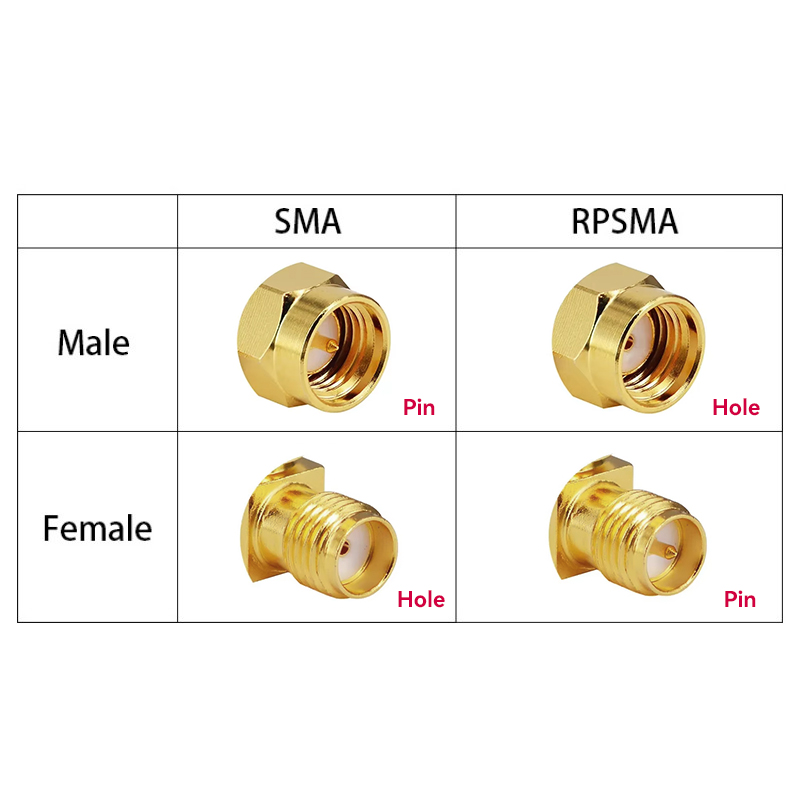

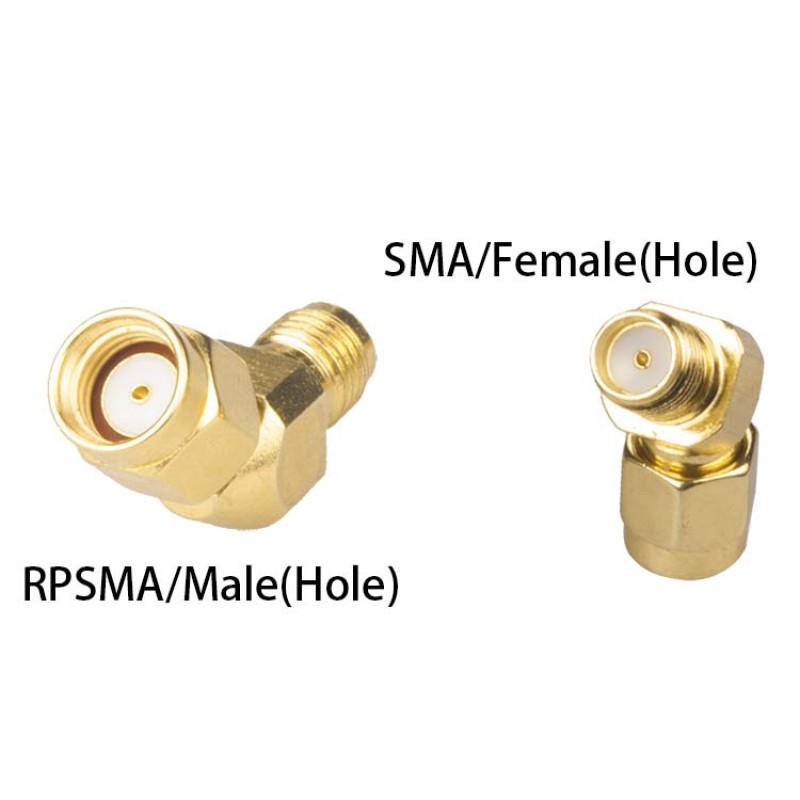

Convert From (Adapter End): RP SMA Plug,female Pin;Convert To (Adapter End) : SMA Jack,female Pin.
Impedance：50Ω, Insertion loss≤0.15dB/6GHz,VSWR≤1.1.
For FPV Race RX5808 Fatshark Goggles Antenna ,FPV Drone,Signal Booster,Repeaters,Radio,RF Coaxial Coax ,Extension Cable,FPV Quadcopter Multicopter.
Package Included:
2 x SMA Adapter
